Get Any Azure Data Factory Pipeline Run Status with Azure Functions

Microsoft.Azure.Management.DataFactory.Models.RunFilterParameters

So I recently found myself with code withdrawal… Yes, its a real thing!  Anyone in an architect type role will understand, I hope… You can’t spend all your time drawing pictures of how things “should” work without occasionally getting hands-on with some code. Anyway, my recent episode of code withdrawal led me to creating some simple, but very useful Azure Functions that I’ve wanted to work on for a while.

The following 3 Azure Functions allow me/you to return the status of any Azure Data Factory pipeline once you supply a few of the usual parameters. I created the set to give me options in behaviour depending on requirements. The following visual offers an overview, because I still had to draw a picture as well! In each case, a user or service can hit the functions via a URL and return the status of an Azure Data Factory pipeline using the pipeline name.

Filtering Pipeline Runs

Before going into the detail of the functions I firstly want to call out how I filtered the pipeline runs for a given Data Factory to ensure only the status of the provided pipeline name is returned. This involves two main filtering parts within the .Net client abstraction provided by Microsoft.

  1. Passing in a data range to the pipeline runs query (client.PipelineRuns.QueryByFactory).
  2. Passing in the Data Factory pipeline name, as provided by the function call.

Both filter parts are wrapped in 3 levels of lists:

  • Firstly, a list of pipeline names,
  • Next, in the RunQueryFilter, where the Pipeline Name is set as the filter criteria.
  • Finally, in the RunFilterParameters, where the date range and pipeline all come together.

For the date range I’ve added an App Setting to the Azure Function App. This setting applies to the first two functions below where we need to handle the period of days we want to use when querying any Data Factory for its pipeline runs. As you probably know whenever a pipeline is triggered within Data Factory it is given a Run ID. This GUID value is critical when returning the status of a pipeline as its important to have the context of when the execution occurred. To simplify the functions I’ve resolved what the Run ID will be by returning all pipeline runs in a given time period and then taking the last value found for the named pipeline. Yes, this is a little crude, which is why I went on the create the third function which can handle the passing of a custom Run ID as well. But still, we can’t get the status of a pipeline without the curial context (Run ID).

The default value I’ve used for the time period filtering is 7 days. This used todays date as the start and todays date minus 7 for the end date. This can of course be changed if you have a larger or smaller window of time for your pipeline runs. But please consider the more executions you have the longer this will take for the function to return.

App setting name: DefaultDaysForPipelineRuns

For the pipeline name filtering this uses the inner part of the RunQueryFilter and passes the Operand, Operator Property and Values to ensure only pipeline runs are returned for our provided pipeline. The values part of the filtering does accept a list of pipeline names, but for my functions I’m expecting only a single value. For more details on these methods please check out the following Microsoft docs page.

https://docs.microsoft.com/en-us/rest/api/datafactory/pipelineruns/querybyfactory#runqueryfilteroperand

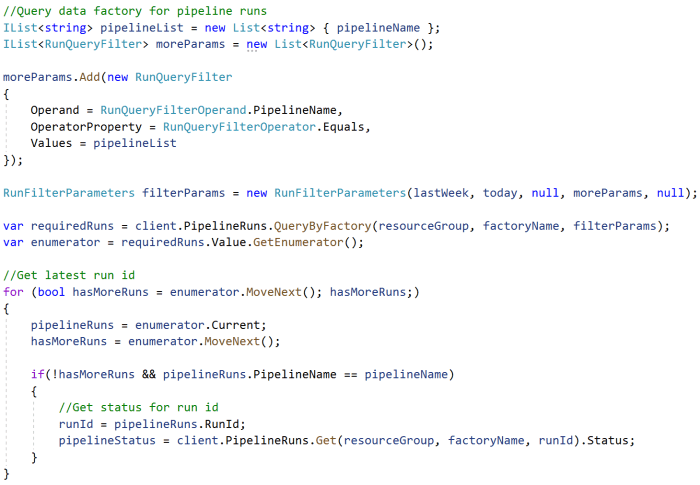

In terms of the code, I created the RunFilterParameters as follows and using the constants RunQueryFilterOperand and RunQueryFilterOperator.

Next a quick overview of the functions themselves:


Get Pipeline Status by Name

Hopefully as the name suggests, this will return the status of any pipeline for a given Data Factory using the name of the pipeline. And as per the filtering details above this assumes that the pipeline has been executed in the last 7 days. Then takes the latest Run ID found.

Body JSON:

{
"tenantId": "1234-1234-1234-1234-1234",
"applicationId": "1234-1234-1234-1234-1234",
"authenticationKey": "Passw0rd123!",
"subscriptionId": "1234-1234-1234-1234-1234",
"resourceGroup": "CommunityDemos",
"factoryName": "PaulsFunFactoryV2",
"pipelineName": "WaitingPipeline"
}

Output

{
"PipelineName": "WaitingPipeline",
"RunIdUsed": "0d069026-bcbc-4356-8fe8-316ce5e07134",
"Status": "Succeeded"
}


Get and Wait For a Pipeline Status By Name

This function will return the status of any pipeline for a given Data Factory using the name of the pipeline. However, if the pipeline is still running or queued the function will block and wait for it to complete. On completion it will return the success status similar to the other functions, or if errored, the error message from the pipeline will be returned.

Body JSON:

{
"tenantId": "1234-1234-1234-1234-1234",
"applicationId": "1234-1234-1234-1234-1234",
"authenticationKey": "Passw0rd123!",
"subscriptionId": "1234-1234-1234-1234-1234",
"resourceGroup": "CommunityDemos",
"factoryName": "PaulsFunFactoryV2",
"pipelineName": "WaitingPipeline"
}

Output

{
"PipelineName": "WaitingPipeline",
"RunIdUsed": "0d069026-bcbc-4356-8fe8-316ce5e07134",
"Status": "Succeeded"
}


Get Pipeline Status by Name and Run ID

This function will return the status of any pipeline for a given Data Factory using the name of the pipeline and also the run ID to establish the context for the execution.

Body JSON:

{
"tenantId": "1234-1234-1234-1234-1234",
"applicationId": "1234-1234-1234-1234-1234",
"authenticationKey": "Passw0rd123!",
"subscriptionId": "1234-1234-1234-1234-1234",
"resourceGroup": "CommunityDemos",
"factoryName": "PaulsFunFactoryV2",
"pipelineName": "WaitingPipeline",
"runId": "1234-1234-1234-1234-1234" // <<< addition for this function
}

Output

{
"PipelineName": "WaitingPipeline",
"RunIdUsed": "0d069026-bcbc-4356-8fe8-316ce5e07134",
"Status": "Succeeded"
}


Other Thoughts

Just a couple of final thoughts related to the above post.

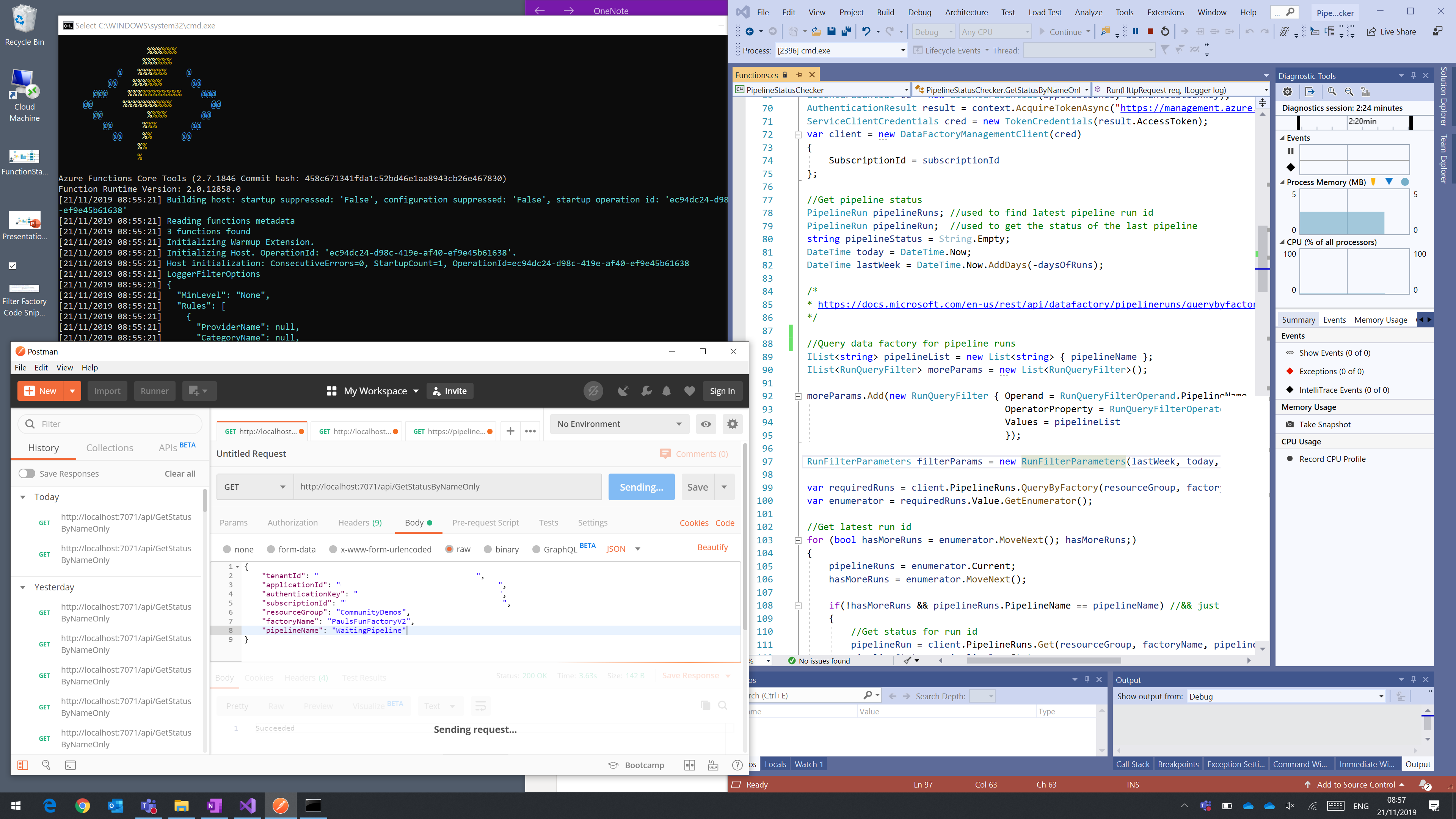

  • If you haven’t developed Azure Function Apps before you really should. The developer experience with Visual Studio 2017 onwards is really nice as it gives you a local functions emulator and mini web server to hit the functions from your local machine within a console. This is good because you can see the console WriteLine etc. Then add PostMan into the mix and its really easy to get going with the code. I’ve added a screen shot on the right of my experience to give you a quick view on how nice it is. Click to enlarge. This is also a symptom of code withdrawl… getting excited by dev tools! 🙂
  • In production we of course wouldn’t be passing service principal ID’s and keys around in function calls. We would use Azure Key Vault and/or Managed Service Identities. Especially if the function wasn’t being called externally to the Azure tenant and maybe triggered in some other way. Hopefully we can appreciate that I only did this in the body of this function request to make the code standalone for anyone that wanted to use it.

Just Give Me The Code!

Ok! Here you go…. Functions.cs 🙂

The full solution is in the same Blob Support Content GitHub repository if you’d like to use the Visual Studio Solution.

I hope you found this post helpful.

Many thanks for reading.
